This production line features an innovative dual-mode intelligent switching system for both fresh-squeezed and concentrated processing, enabling flexible production of three product categories: NFC (Not-From-Concentrate) orange juice, FC (Frozen Concentrate) orange juice, and pulpy orange beverages. With a daily processing capacity of 200 tons of fresh fruit, it utilizes low-temperature physical processes to achieve ≥95% vitamin C retention rate, complying with GB 17325, FDA 21 CFR Part 120, and other international food safety standards.
Core Systems & Innovative Technologies
| Module | Technical Specifications | Dual-Mode Compatibility |

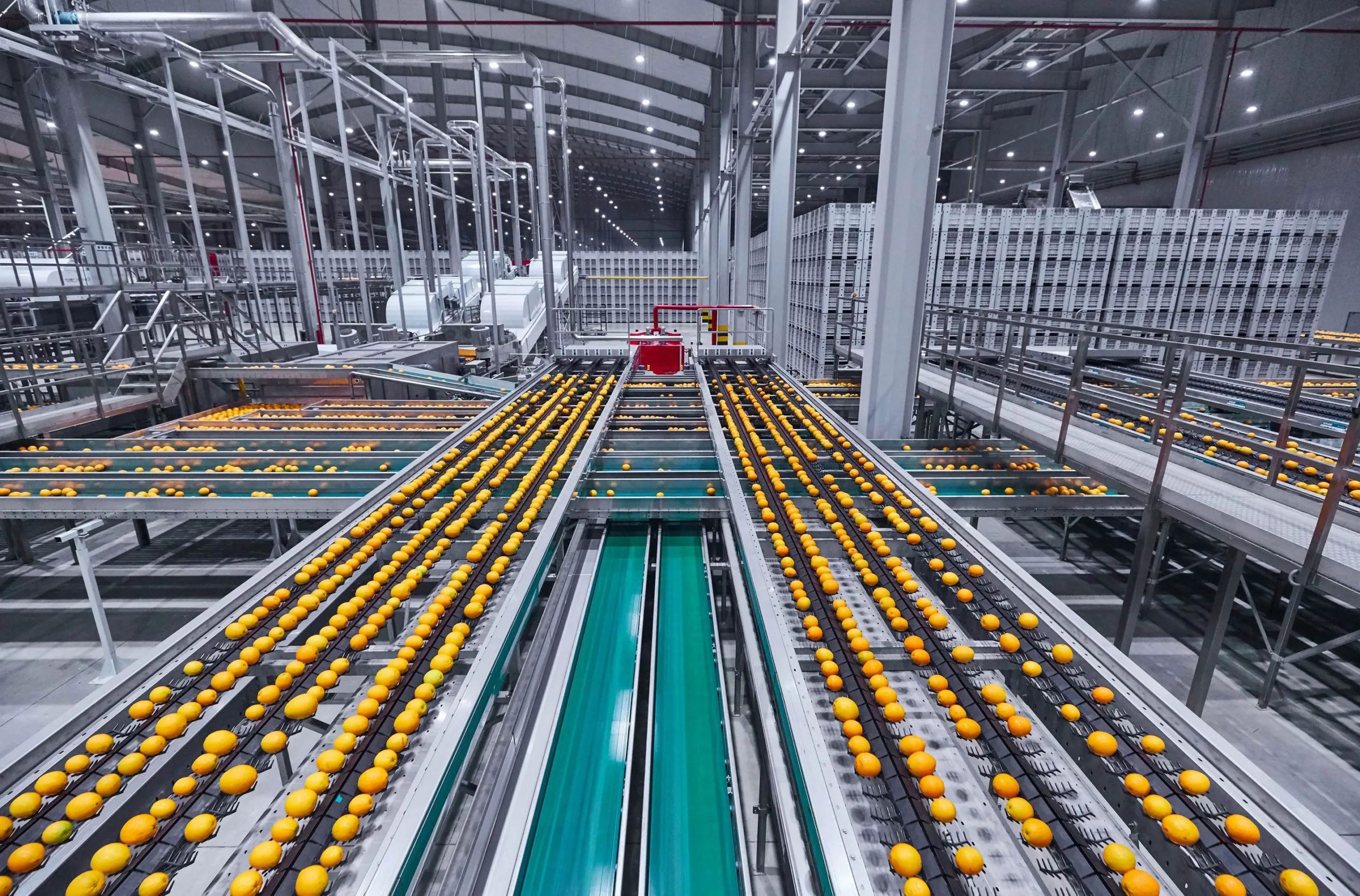

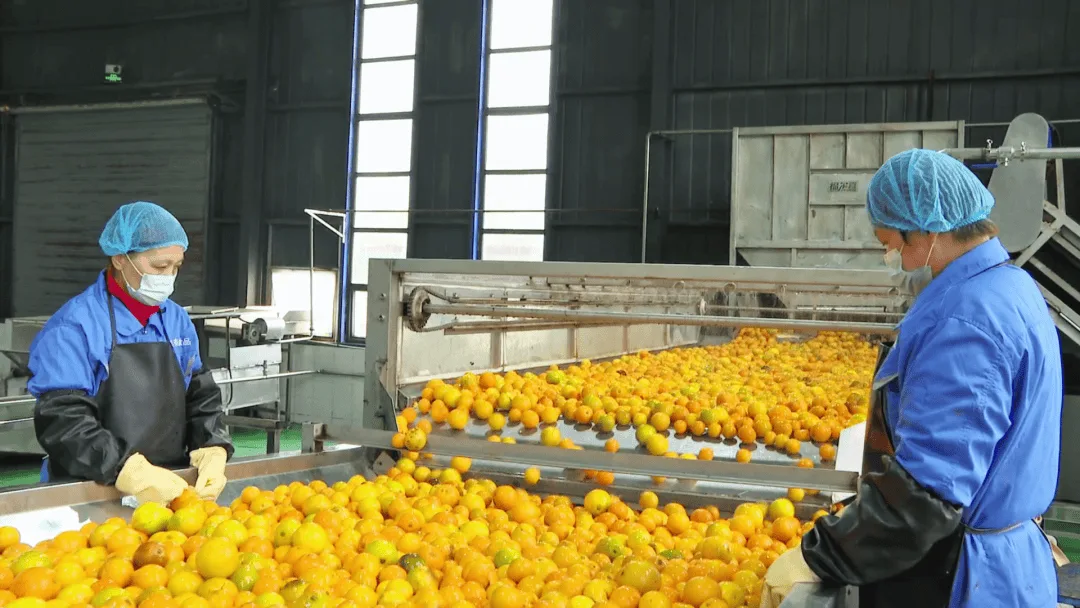

| 1. Intelligent Sorting & Washing | Sugar degree detection + 360° brush washing (Pesticide degradation rate ≥90%) | Universal for both modes |
| 2. Whole-Fruit Extraction | Brown extractor (Yield rate ≥82%, bitter compounds ≤5ppm) | Fresh-squeezed mode only |
| 3. Ultrafiltration Separation | Ceramic membrane molecular sieve (Retains pulp particle size 40-100μm, removes seed fragments) | Universal |
| 4. Aroma Recovery | Vacuum falling-film aroma capture tower (Recovery rate ≥92%, for concentrate reconstitution) | Concentrated mode core |

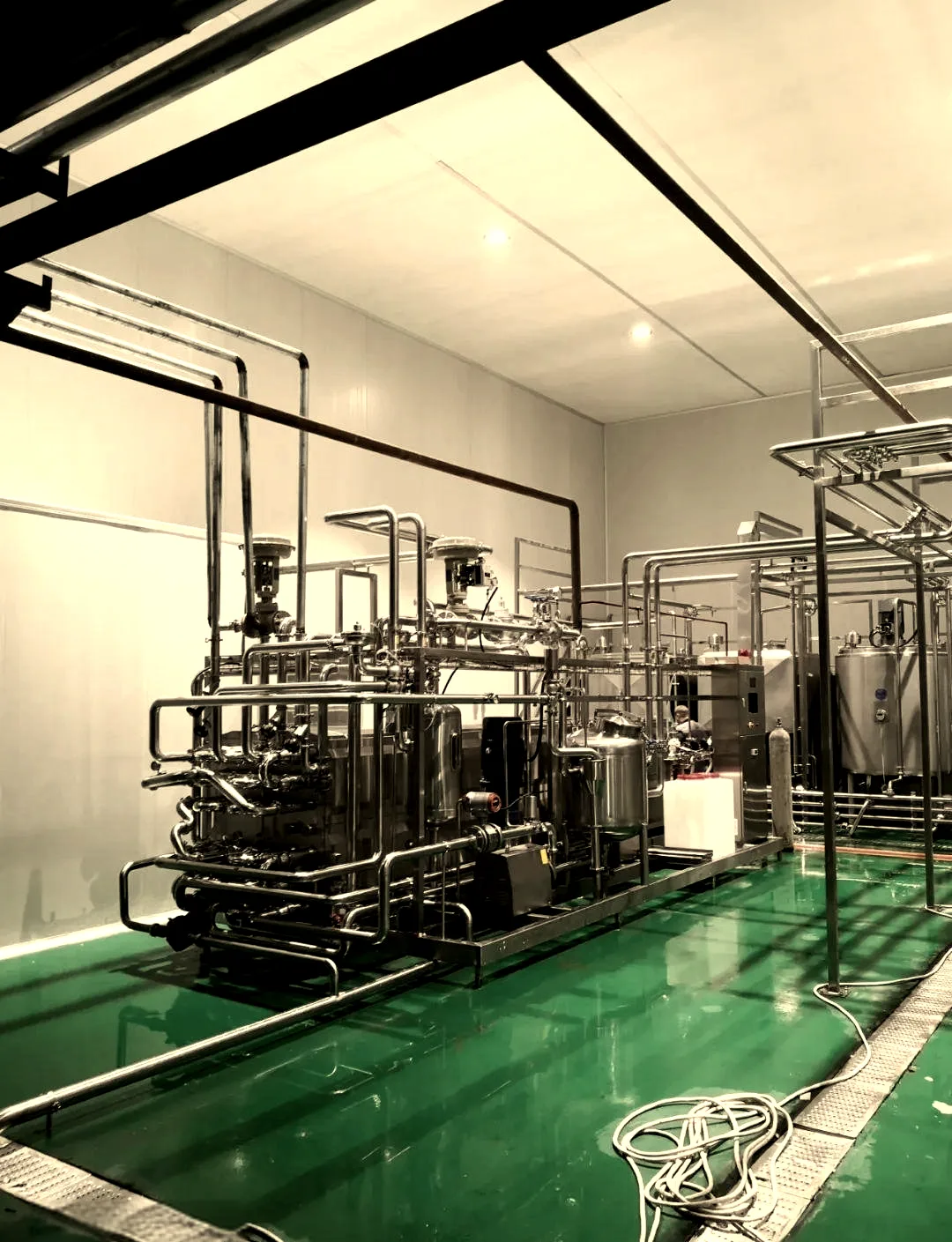

| 5. Pasteurization | Tubular multi-stage sterilization (Fresh: 72℃/15s; Concentrate: 88℃/30s) | Independent dual-process control |

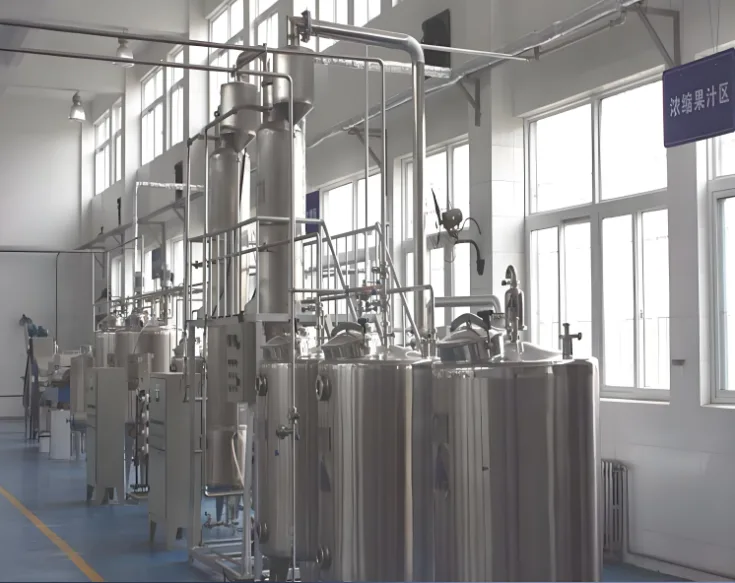

| 6. Vacuum Concentration | Quadruple-effect falling-film evaporator (45% energy saving, solids: 12°Bx→65°Bx) | Concentrated mode only |

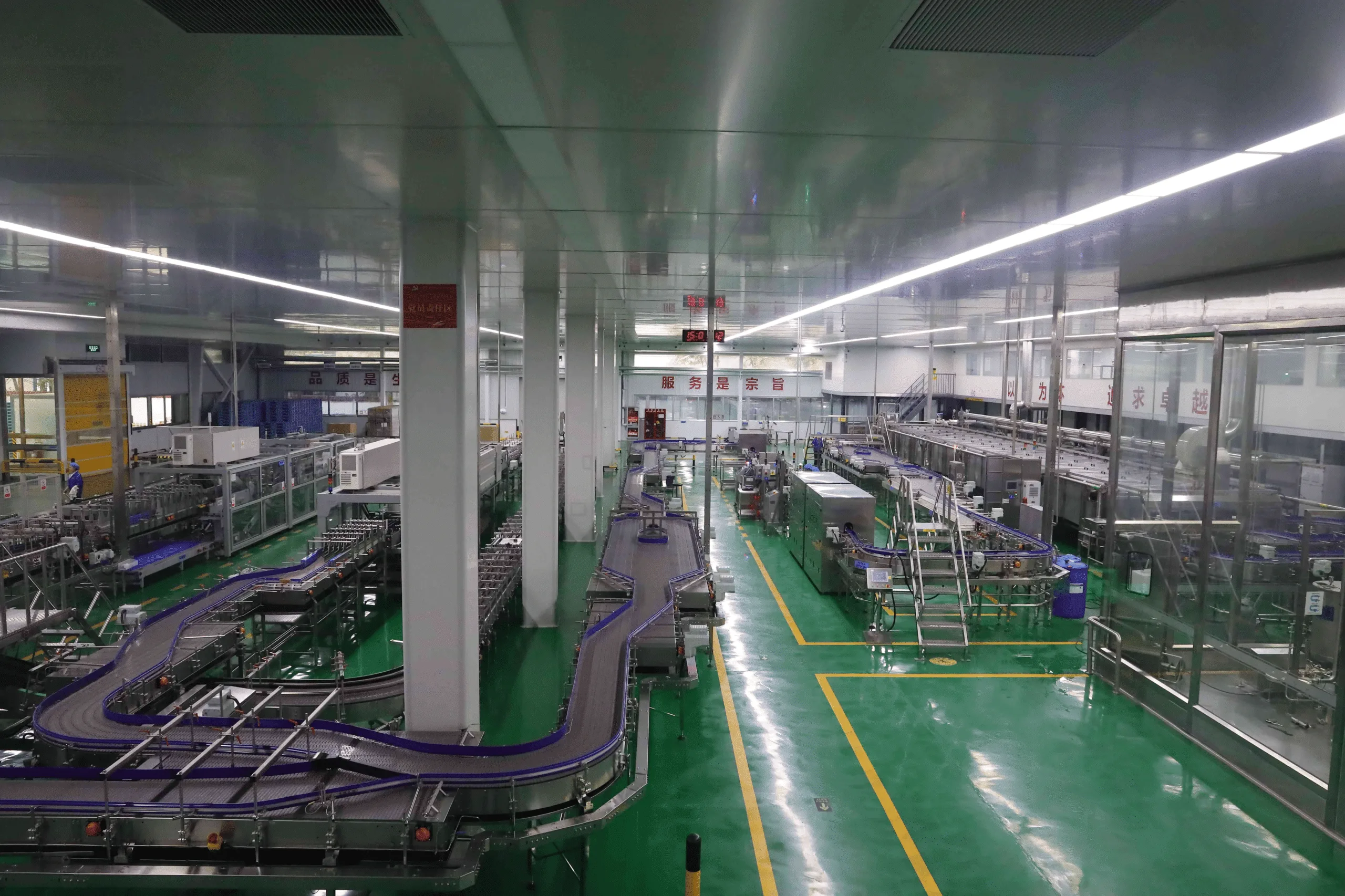

| 7. Aseptic Filling | Negative-pressure filling + N₂ protection (O₂ residual ≤0.5%, compatible with PET/Tetra Pak/aseptic bags) | Universal |
| 8. CIP/SIP | Full-pipeline H₂O₂ sterilization (Real-time microbial risk monitoring) | Mandatory for both modes |
Technical Advantages
◆ Revolutionary Fresh Juice Quality
NFC Option: HPP cold sterilization (600MPa) extends shelf life to 120 days
Browning inhibition: Reduces polyphenol oxidase activity by 98% (ΔE color difference ≤1.5)
◆ Concentrate Process Benchmark
Steam heat recovery: Energy consumption ≤110kg steam/ton concentrate (National standard ≤160kg)
Optional freeze concentration module: -35℃ crystallization preserves thermosensitive components
◆ Intelligent Flexible Production
3-hour mode switching (fresh ↔ concentrate)
1 line compatible with 3 packaging formats (200ml-1L)
◆ Zero-Waste Resource Utilization
Peel residue converted to animal feed (Moisture content ≤40%)
100% condensate water recycling for cleaning
Applications
text
► NFC Orange Juice: Short-shelf-life premium juice, HPP sterilized products
► FC Orange Juice: Export-grade frozen concentrate, beverage reconstitution base
► Pulpy Orange Beverage: Suspended pulp system (Pulp content ≥15%)
Success Cases
🔹 Nongfu Spring NFC Line (Jiande, Zhejiang)
HPP module implementation increased retail price by 40%
🔹 Citrosuco Concentrate Plant (Brazil, global supply base)
Freeze concentration unit saves ¥23 million annually
